21.25 X 17 RMP™ [Rigid MOLLE Panel] by Grey Man Tactical
MEMORIAL DAY SALE! 20% OFF WITH CODE "20MD" ENTERED AT CHECKOUT!
21.25 X 17 RMP™ - Grey Man Tactical
21.25 X 17 RMP™ - Grey Man Tactical
21.25 X 17 RMP™ - Grey Man Tactical
21.25 X 17 RMP™ - Grey Man Tactical

21.25 X 17 RMP™

2 reviews   |

Regular price $59.99


RMP Pelican 1610 Lid Organizer and Horizontal Cargo Area Gear Panel


- Pre-drilled holes to line up with mounting points in lid of Pelican Case

- Rigid Panel prevents sagging

- Attach MOLLE style pouches to organize your gear

- Customize with Adhesive Backed Loop to accept Velcro Hook Pouches

- Use GMT backer plates to hard mount accessories

- 0.25" holes on edge for mounting with screws

- 1" slots for attaching 1" Webbing Mounting Straps and Handles

The RMP was designed for modular organization on a rigid platform which can be secured in the lid, base, or walls of hard side cases among other applications. Quick access to your gear is enhanced by the consistent positioning and customizable layout. Inserted into any hard side case or vehicle, it gives you the tactical ability to organize your mission critical gear on an interchangeable platform that can be swapped out or quickly reorganized as the mission changes.


Product Specifications


Width: 21.25" (533.4mm)

Height: 17" (431.8mm)

Thickness: 0.188" (4.77mm)

Material: High Strength Polyethylene

Panel Weight: 23 ounces (652.039 grams)




Pelican and Hard Case Compatibility


- The 21.25in x 17in RMP is made to specifically fit the Pelican 1610 lid.

Mounting RMP to Pelican Case Lid

Molded Screw Mounting Points:

- Line up the pre-drilled holes on the panel with the molded mounting point and fasten with the "#8 x 1/2" Pelican Case Mounting Screws".

- It is recommended to line up the top center hole and fasten with a screw there first.

- If there is a an issue with the holes not lining up perfectly a standard drill with a 0.125" or similar sized drill bit to create new mounting hole

Slick Lids with No Molded Screw Mounting Points:

Many models of Pelican Case and other Hard Side protective cases do not have any molded mounting points. In this case we avoid using screws as it may pierce through the exterior of the case causing damage to the air/water tight nature of the case. Instead we specify using 3M Dual Lock adhesive backed tape (available on our site). In order to adhere to the very slick plastic of the hard side case as well as the RMP, we specify using the included 3M Primer 94 to prime all surfaces where 3M Dual Lock will adhere.

- Wipe surface to be adhered to (RMP and corresponding surface on Hard Case Lid) with an Alcohol Cleaning Wipe. Allow to completely dry.

- Apply 3M Primer 94 to RMP and Hard Case Lid where 3M Dual Lock will be adhered. Allow to tack up per directions supplied with 3M Primer 94.

- Peel and Stick 3M Dual Lock into place, use firm pressure to ensure 100% contact is achieved.

- Allow to dry over night and then snap RMP panel onto Lid of Case.

Vehicle Compatibility

- Compact to Full Size Cars (Trunk lid or rear seat back which is in trunk space)

- Compact to Full Size SUVs (Fold up Rear Seats, Cargo Area Walls)

- Compact to Full Size Trucks (Fold up Rear Seats, Cargo Area Walls)



- Helicopters and Aircraft (Cargo Area Walls)

- Boats (Cargo Area Walls)

Securing RMP to Vehicle Seat

For Rear Fold Up Seats

- Loop two or more longer Bottom straps around the base of the seat and secure to the RMP on both sides of panel. Can be mounted under flip up seat base or on flip down rear row seat backs in the same fashion.

- Tighten to desired fit.

- Optionally lock the RMP panel by passing a cable lock through one of the holes or rectangular punch outs on the RMP panel and then loop through the metal base of the vehicle seat to lock it to vehicle.

For Seats with Exposed Metal Frames (MRAP and Similar)

 - If holes on outside of panel line up with metal frame, simply mark where screws/bolts will be on the Metal Seat Frame, drill and tap to accept screw/bolt of your choice.

- If existing holes on panel do not line up, mark and drill new holes in panel to pass mounting hardware through.

- Recommended to Mount panel using Nylon Spacers (5/16" x 0.25"ID available through GMT) to provide standoff.

Mounting RMP to Safe Door

Mounting to Internal Wood Panel of Safe Door:

- Line up RMP in desired location.

- Using "Hardware Mounting Kit - Self Drilling Screws with Nylon Spacers" available through GMT slide the Self Drilling Screw through the outside edge holes on the RMP, slide a spacer onto it, and then drill/screw into the wood paneling of the safe door.

- A pilot hole may be drilled if desired prior to applying screws/spacers.

Attaching Quick Fist Gear Clamps

- Set Backer Plate into punch out from back of panel at desired location.

- Accessories with multiple backer plates may need the backer plates to be oriented properly for either vertical or horizontal mounting

- Pass screws through rubber Quick Fist Clamp and line up with drilled/tapped hole in backer plate, secure by screwing into hole.

- Multiple sizes of Quick Fist Rubber Clamps are available to secure different sized tools.

- The same procedure can be used to attach any accessory that requires backer plates




Attaching MOLLE Pouches


Standard MOLLE Pouch Attachment to Grey Man Tactical Rigid MOLLE Panel Tactical Tailor MALICE Clip MOLLE Pouch Attachment to Grey Man Tactical Rigid MOLLE Panel Tactical Tailor MALICE Clip MOLLE Pouch Attachment to Grey Man Tactical Rigid MOLLE Panel

Maxpedition MOLLE Pouch how to attach to Grey Man Tactical Rigid MOLLE Panel WTFix Straps MOLLE pouch attachment to Grey Man Tactical Rigid MOLLE Panel WTFix Straps MOLLE Pouch attachment to Grey Man Tactical Rigid MOLLE Panel

Duraflex Speed Sticks MOLLE Pouch Attachment to Grey Man Tactical Rigid MOLLE Panel Duraflex Speed Sticks MOLLE Pouch attachment to Grey Man Tactical Rigid MOLLE Panel Blackhawk Speed Clips MOLLE Pouch Attachment to Grey Man Tactical Rigid MOLLE Panel

Blackhawk Speed Clips MOLLE Pouch Attachment to Grey Man Tactical Rigid MOLLE Panel G-Code Softshell Scorpion Mag Pouch and RTI Wheel attachment with backer plates to Grey Man Tactical Rigid MOLLE Panel G-Code Softshell Scorpion Mag Pouch and RTI Wheel attachment with backer plates to Grey Man Tactical Rigid MOLLE Panel

Upgrading to accept Velcro Hook/Loop Pouches

To upgrade any RMP to accept Hook backed pouches, morale patches, or accessories follow the below steps:

To adhere the Adhesive backed Velcro Loop tape to your RMP panel:

- Purchase "Low Profile Loop - Adhesive Backed - 1" Width" from GMT.

- Ensure the panel is cleaned with an alcohol wipe and completely dry.

- Peel the backing off the adhesive backed velcro tape and place the loop section onto the panel. Press firmly into place, and then press further with a rolling pin or place heavy weight onto panel to compress and ensure full contact.

- Apply heat from a hair dryer to warm up the panel and the velcro, enabling the adhesive to "run" or liquefy enough to seep into the panel for a better bond.

- Optionally, use 3M Primer 94 to prime the surface before sticking the adhesive backed velcro into place. This promotes higher adhesion to the panel.

Customer Reviews

5.0 Based on 2 Reviews
5 ★
100%
2
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
GG
Gabriel G.
United States
04/19/2022

Great product

Worked good overall. Had to shave a little off but that was my fault for misseasuring. Otherwise great product will definately order again. Possibly other products for my rig also.

SC
Shawn C.
United States United States
06/15/2020

Outfitting our Overland Expedition Vehicle

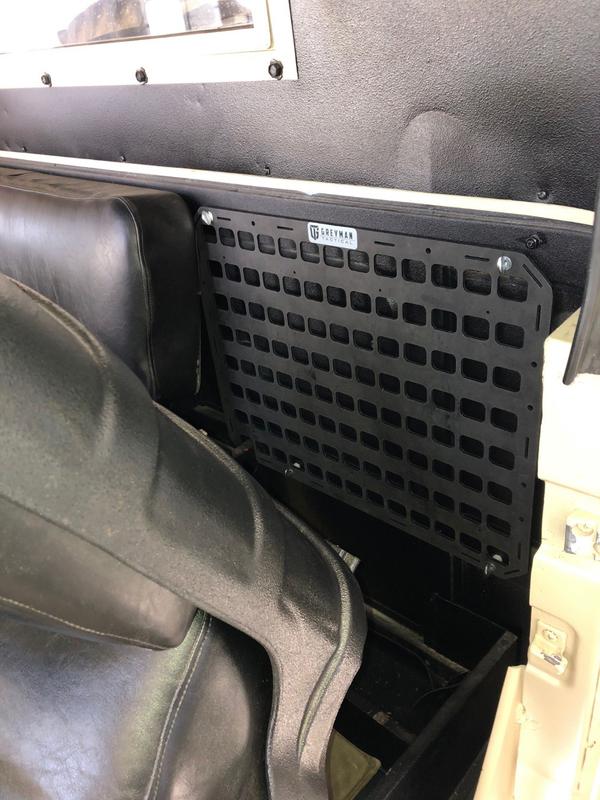

A recent purchase of a Gray Man 21.25 X 17 RMP™ has been a great addition, as well as a slick problem solving feature for our vintage overland project. We are currently updating an 1953 M37 Ex US Army Dodge Power Wagon into a Desert Overland Expedition Vehicle. Although the M37 is a big brute of a pickup truck, the cab is small and has minimal space to organize basic items. I purchased the 21.25 X 17 RMP™ to hang on the cab wall behind the driver seat as a way store these loose items. Installation required minor trimming for a perfect fit. I installed nutserts in the cab wall and thumbscrews to secure it. This RMP™ is easily removable to change out the gear depending on the trail. It also allows me to take everything with me if needed (vintage Army vehicles don't have door locks). I anticipate additional RMP™ purchases in the future as this project begins shakedown trail runs and edges closer to completion.
